Eliminator Lighting’s Ikon Profile Plus Offers Versatile GOBO Projection

February 6, 2024

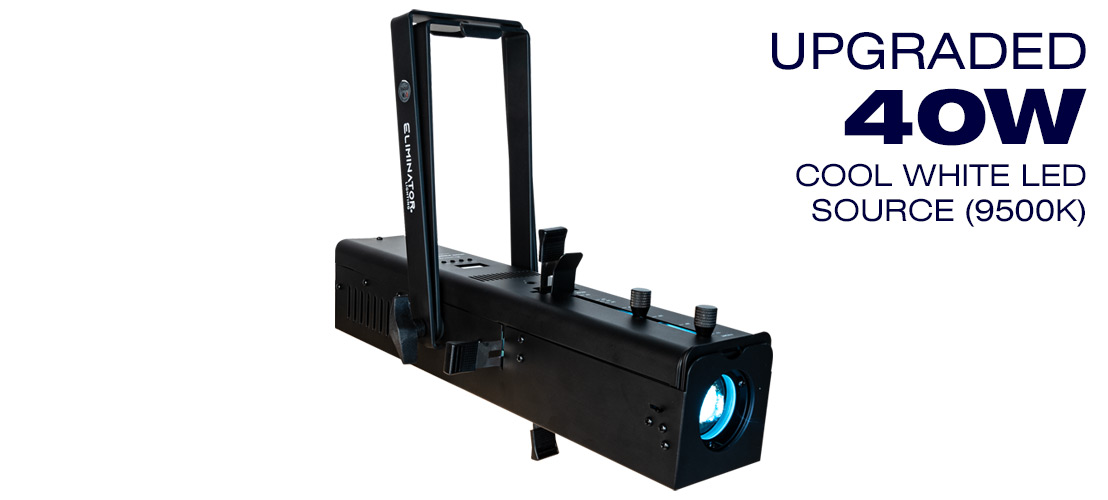

A flexible and affordable GOBO projector that easily doubles as an effective spotlight unit, Eliminator’s new Ikon Profile Plus combines an upgraded 40-Watt LED, interchangeable GOBOs, and manually adjustable beam angle/focus features in one exceptionally portable package.

Ikon Profile Plus is a cutting-edge GOBO projector that boasts an impressive array of features, making it a must-have for architectural, stage, venue, event, house of worship, and retail lighting applications requiring the projection of logos, custom designs, or breakup patterns. Powered by an efficient 40-Watt cool white (9500K) LED source (a power boost from previous models), which delivers a CRI of 80 and output of 4121 lumens, the Ikon Profile Plus delivers fantastic brightness and clarity. Its manually adjustable beam angle (15 – 30 degrees) and interchangeable GOBOs offer unparalleled versatility, allowing users to customize their lighting designs with ease.


idon profile plus

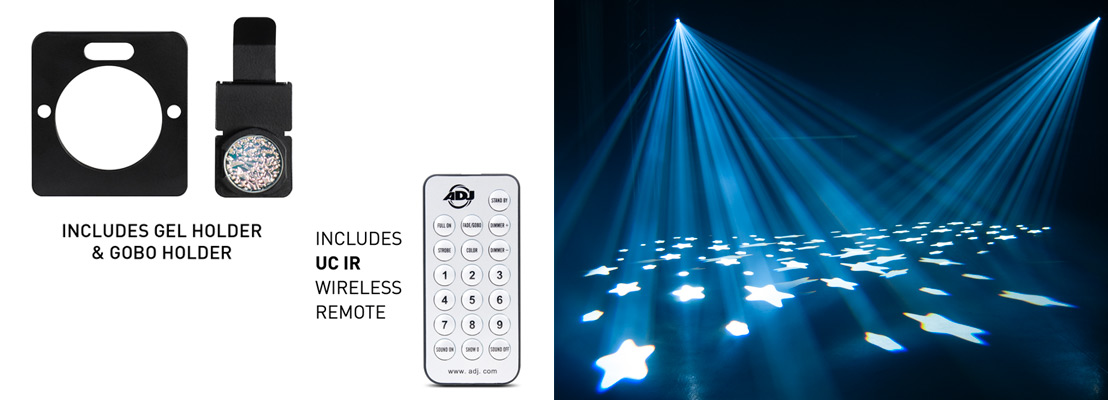

The fixture comes complete with useful accessories, including one textured glass GOBO, four metal GOBOs, a gel frame, a drop in GOBO holder, and a scissor yoke. The robust dual yoke locks securely into place using large plastic thumb-tightening screws and can be used either as a floor stand or hanging bracket. A safety eyelet is built-in to the rear of the fixture so that it may be secured to truss with a safety cable, adding extra protection when being flown.

One of the key features which makes the Ikon Profile Plus such a versatile product is its framing shutters. Being manually adjustable, they allow users to craft the light produced by the unit into any three or four-sided shape. Whether they require a square beam, triangle or a wider rectangular form, users can customize the Ikon Profile Plus’s projection to highlight venue features or specific areas, for a sleeker, more precise look.

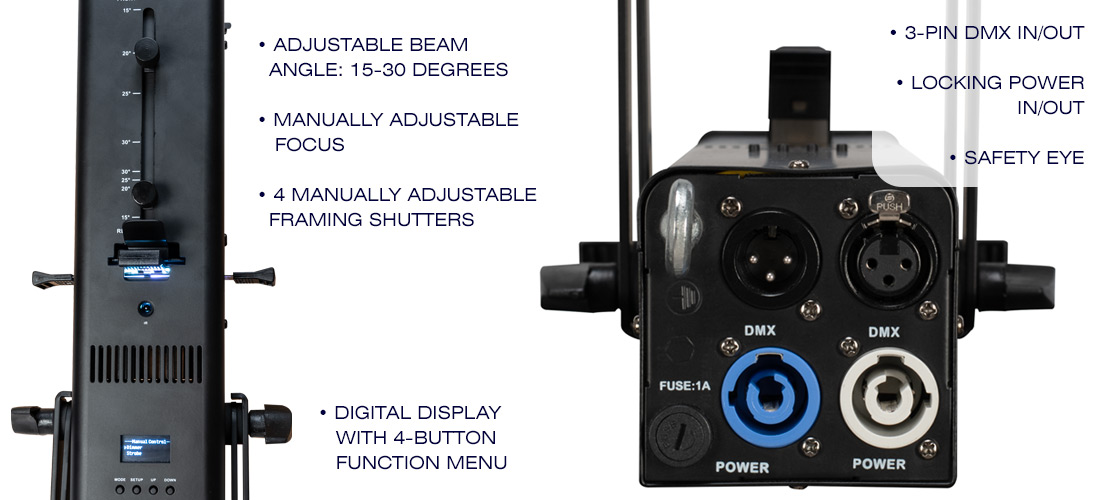

back view

The beam angle may be manually adjusted (15 to 30-degrees) and the GOBO swapped out, effectively allowing the projector to turn instantly into a spotlight. Manual focus allows for the GOBO projection or spotlight to be sharply focused or artistically blurred. Custom GOBOs can be easily used with the fixture, allowing events or venues to be effectively personalized. The GOBO size is 26.8mm, with a 24mm viewable size.

With six dimmer curves and 0-100% dimming, as well as adjustable strobe and pulse effects, the Ikon Profile Plus provides a lot of flexible lighting control options. Its digital LED display screen provides access to a menu-driven interface controlled by four push buttons. This facilitates convenient setup for standalone operation or DMX addressing, with a choice between 3 or 4-channel modes. Alternatively, the unit is compatible with the RDM protocol, which means that it can be addressed remotely using a compatible lighting control system. The fixture is also supplied with a UC IR wireless remote, which can be used to switch on and off the output remotely and also provides dimming and strobe control.

gobo options

Designed with convenience in mind, the Ikon Profile Plus features locking power connections for easy power distribution and 3-pin DMX sockets for seamless data linking between multiple units. For larger events or installations, where multiple fixtures are required, power for up to 14 units may be daisy-chained at 120V (24 @ 230V), for a widespread lightshow that really packs a punch!

“We’re thrilled to announce that the Ikon Profile Plus is officially on the market,” comments Albert Paredes, Product Manager for Eliminator Lighting. “With an upgraded 40-Watt LED source and locking power in and thru, this projector represents the next evolution in compact GOBO projection, offering unmatched performance and flexibility for a wide range of applications.”

gobo option 2

The Ikon Profile Plus has compact measurements of 17.75” x 6” x 5” (448mm x 150mm x 127mm), with a weight of only 6 pounds (2.7 kg). The maximum power consumption is a mere 44W and the unit supports multi-voltage operation (100-240V, 50/60Hz). The fixture is CE compliant and ETL approved (Control #4002034) for electrical safety. Its compact size and lightweight design make it ideal for both permanent installations and on-the-go lighting setups.

The Ikon Profile Plus is available now from Eliminator Lighting USA.

Further information about the Eliminator Lighting Ikon Profile Plus: www.adj.com/ikon-profile-plus

more options

Eliminator Lighting is a part of the ADJ Group of Companies.

Further information from ADJ: www.adj.com
